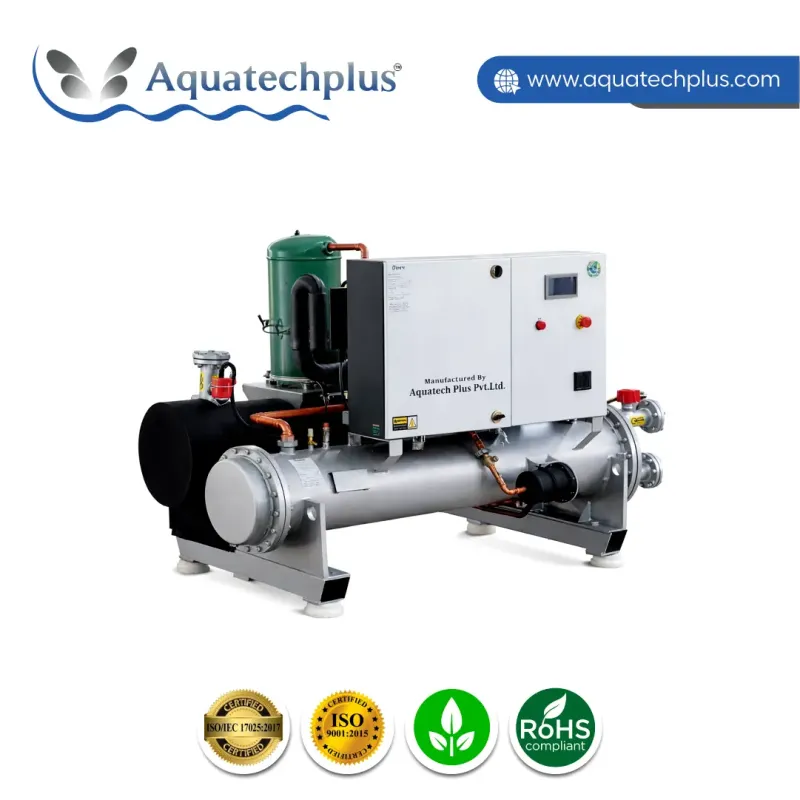

The Water-Cooled Water Chiller is an efficient cooling system that can be used in industries and businesses. It employs water in a cooling tower to absorb and transfer heat, which ensures advanced and accurate temperature control of a diverse number of processes. This chiller has a powerful compressor, a water-cooled condenser, and a powerful evaporator that ensure the same performance along with maximum energy use.
Water-Cooled Water Chiller are ideally used in pharmaceuticals, food processing, and large-scale industrial operations, as they can operate smoothly and continuously even during heavy loads. The water-cooled water chiller comes with benefits such as quiet operation, long life and custom capacity, which make it the best choice when a business requires reliable and inexpensive cooling systems that are environmentally friendly.
Aquatech Plus is an Indian based Water Cooled Water Chiller Manufacturers in India that is technically oriented and provides engineered cooling systems that are engineered to meet the needs of an industrial setting with regard to efficiency and stability, as well as sustained performance. Such chillers are constructed with advanced cooling in view of providing high cooling performance by use of water-cooled heat rejection, with the external integration of a cooling tower help.
The configuration of the system enables the regulation of the temperature accurately and over a broad operating range to enable its application in process applications that need to maintain constant thermal conditions. The portable construction that has built-in wheels allows it to be placed anywhere in the production area and still have strong operational ability. Water Cooled Water Chiller range is designed to accommodate medium to high cooling loads with constant output, less energy use per unit of cooling, and stable operation with constant duty operation.
Water-cooled water chillers are set with the industrial grade of components chosen to be efficient, safe and have stability of operation.
Installing compressors of well-known brands in the world, several compressor designs of higher capacity models are being used to better share loads and improve reliability.
Intended to run alongside the external cooling tower to guarantee effortless heat rejection and stable functioning.
Supplies stainless steel buffer tanks with copper coils when used as open loop, and shell and tube and stainless steel plate heat exchangers when used in closed loop applications.
Incorporated stainless steel water pump and non-corrosible piping enhance the reliability of the system in terms of life span and reliability of its operations.
Features pressure regulation, anti-freezing, phase loss and overcurrent protection.
This system architecture provides confidence in the work of the system in the face of challenging industrial cooling tasks.
Aquatech Plus operates as a formal Water Cooled Water Chiller Suppliers in India; therefore, every unit delivered by the company would be tested according to specific performance and quality specifications before being delivered. Supplier processes are concerned with the accuracy of configuration, functional testing and site ready-to-install. All chillers are pre-assembled and loaded with refrigerant to make commissioning easier at the customer plants.
Water chillers that are water-cooled are widely used in industries where stability of the temperature has a direct impact on efficiency in the process and regularity in the output. They help to ensure mould temperature control and repeatability in the cycle in plastics manufacturing. Controlled cooling is used in the production facilities of electronics to handle the heat-sensitive equipment. The chemical processing activities depend on constant water temperatures so as to assist in the control of reactions and the safety of the processes.
Printing lines are an advantage of controlled cooling to ensure material dimensional stability and operational precision. These systems are chosen in most installations where a higher efficiency is needed in comparison with air-cooled ones, and external cooling tower facilities are present.
Aquatech Plus is a reliable Water Cooled Water Chiller Dealers in India, through its established distribution network that serves the customers in the selection and installation planning of the systems. Dealer involvement is concerned with the ability to match cooling capacity, temperature range, and configuration with particular process needs.
Aquatech Plus is an exporter of Water Cooled Water Chillers to other countries as an experienced Water Cooled Water Chiller Exporters in India, and the systems are ready to get transported internationally and installed. Export processing activities are used to maintain the integrity of equipment, document correctness, and prepare for commissioning at the final site.
Aquatech Plus provides water-cooled water chillers designed to provide consistent temperature regulation, enhance efficiency and long term reliability in industrial settings. Tight collaboration between our technical team and customers helps us to know the conditions of processes, cooling loads, and infrastructure at the site to select the systems in accordance with operational objectives.
Contact us to discuss your requirements for an application and discuss a cooling solution that is designed to perform reliably and use less energy.
| Item | Unit | Model | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AW-3W | AW-4W | AW-5W | AW-6W | AW-8WD | AW-10WD | AW-12WD | AW-15WD | AW-15WT | AW-20WD | ||
| Cooling Capacity | |||||||||||
| Kcal/h | 50Hz | 8170 | 11266 | 14018 | 16340 | 22532 | 28036 | 32680 | 43172 | 42140 | 56760 |
| 60Hz | 9604 | 13519 | 16822 | 19608 | 27038 | 33643 | 39216 | 51806 | 50568 | 68112 | |
| kW | 50Hz | 9.5 | 13.1 | 16.3 | 19 | 26.2 | 32.6 | 38 | 50.2 | 49 | 66 |
| 60Hz | 11.4 | 15.72 | 19.56 | 22.8 | 31.44 | 39.12 | 45.6 | 60.24 | 58.8 | 79.2 | |
| Electrical | |||||||||||
| Input Power | kW | 3.07 | 3.87 | 5.3 | 5.95 | 7.75 | 10.6 | 11.9 | 16.25 | 15.85 | 19.71 |
| Max Current | A | 7.5 | 9.4 | 12.9 | 14.4 | 18.8 | 25.7 | 28.9 | 39.4 | 38.2 | 47.8 |
| Power Source | 3PH~380V/415V/480V~50Hz/60Hz (3PH~200V/220V~50Hz/60Hz) | ||||||||||
| Refrigeration | |||||||||||
| Refrigerant | R22 / R407C / R134a / R404A / R410A | ||||||||||
| Control | Capillary / Thermostatic Expansion Valve | ||||||||||
| Compressor | |||||||||||
| Type | Hermetic Scroll (Piston) | ||||||||||
| Power | kW | 2.7 | 3.5 | 4.55 | 5.2 | 3.5×2 | 4.55×2 | 5.2×2 | 7×2 | 4.55×3 | 8.96×2 |
| Condenser | |||||||||||
| Type | Shell & Tube / SS Plate Type Heat Exchanger | ||||||||||
| Cooling Water | m³/h (50Hz) | 2.1 | 2.9 | 3.6 | 4.2 | 5.7 | 7.1 | 8.3 | 11 | 10.8 | 14.4 |
| m³/h (60Hz) | 2.4 | 3.3 | 4.1 | 4.8 | 6.6 | 8.3 | 9.6 | 12.8 | 12.5 | 16.7 | |
| Inlet / Outlet Pipe | inch | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | 2" |
| Safety Protection | |||||||||||
| Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence / phase missing protection, low coolant level protection, anti-freezing protection, exhaust overheat protection. | |||||||||||
| Dimensions & Weight | |||||||||||
| L | mm | 830 | 910 | 830 | 830 | 1170 | 1170 | 1170 | 1700 | 1700 | 1700 |
| W | mm | 530 | 480 | 530 | 530 | 710 | 710 | 710 | 800 | 800 | 800 |
| H | mm | 910 | 1000 | 910 | 910 | 1300 | 1300 | 1300 | 1600 | 1600 | 1600 |
| Net Weight | kg | 135 | 135 | 150 | 165 | 230 | 255 | 265 | 430 | 430 | 510 |
| Item | Unit | Model | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AW-20WF | AW-25WD | AW-25WF | AW-30WD | AW-30WT | AW-40WD | AW-40WF | AW-50WD | AW-50WF | AW-60WF | ||
| Cooling Capacity | |||||||||||
| Kcal/h | 50Hz | 56072 | 66048 | 65360 | 83420 | 85140 | 114036 | 113520 | 134504 | 132096 | 169764 |
| 60Hz | 67286 | 79258 | 78432 | 100104 | 102168 | 136843 | 136224 | 161405 | 158515 | 203717 | |
| kW | 50Hz | 65.2 | 76.8 | 76 | 97 | 99 | 132.6 | 132 | 156.4 | 153.6 | 197.4 |
| 60Hz | 76.56 | 92.16 | 91.2 | 116.4 | 118.8 | 159.12 | 158.4 | 187.68 | 184.32 | 197.4 | |
| Electrical | |||||||||||
| Input Power | kW | 20.4 | 23.8 | 23 | 30.99 | 30.63 | 41.31 | 39.59 | 52.7 | 48.7 | 65 |
| Max Current | A | 48.5 | 61.7 | 60 | 75.2 | 74.8 | 100.3 | 96.6 | 127.9 | 119.7 | — |
| Power Source | 3PH~380V/415V/480V~50Hz/60Hz (3PH~200V/220V~50Hz/60Hz) | ||||||||||
| Refrigeration | |||||||||||
| Refrigerant | R22 / R407C / R134a / R404A / R410A | ||||||||||
| Control | Capillary / Thermostatic Expansion Valve | ||||||||||
| Compressor | |||||||||||
| Type | Hermetic Scroll (Piston) | ||||||||||
| Power | kW | 4.55×4 | 10.8×2 | 5.2×4 | 13.62×2 | 8.96×3 | 18.78×2 | 8.96×4 | 23.6×2 | 10.8×4 | 13.62×4 |
| Condenser | |||||||||||
| Type | Shell & Tube / SS Plate Type Heat Exchanger | ||||||||||
| Cooling Water | m³/h (50Hz) | 14.4 | 17 | 16.7 | 21.4 | 21.7 | 29.3 | 28.9 | 35 | 33.9 | 43.2 |
| m³/h (60Hz) | 16.6 | 19.6 | 19.3 | 24.7 | 25.1 | 33.8 | 34.4 | 40.4 | 16.6 | 50 | |
| Inlet / Outlet Pipe | inch | 2" | 2" | 2½" | 2½" | 2½" | 3" | 3" | 3" | 3" | 4" |
| Evaporator | |||||||||||
| Type | SS Tank with Copper Coil / Shell & Tube / Plate Type Heat Exchanger | ||||||||||
| Chilled Water | m³/h (50Hz) | 11.21 | 13.21 | 13.1 | 16.68 | 17.02 | 22.8 | 22.7 | 26.9 | 26.41 | 33.95 |
| m³/h (60Hz) | 13.45 | 15.85 | 15.68 | 20.02 | 20.43 | 27.36 | 27.24 | 32.27 | 31.7 | 40.73 | |
| Water Tank | L | 330 | 350 | 350 | 450 | 450 | 580 | 580 | 620 | 620 | 620 |
| Water Pump | |||||||||||
| Power | kW | 2.2 | 2.2 | 2.2 | 4 | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Max Lift | m | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 32 | 32 | 32 |
| Max Flow | m³ | 25.2 | 25.2 | 25.2 | 36 | 36 | 36 | 36 | 40 | 40 | 40 |
| Safety Protection | |||||||||||
| Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence / phase missing protection, low coolant level protection, anti-freezing protection, exhaust overheat protection. | |||||||||||
| Dimensions & Weight | |||||||||||
| L | mm | 1700 | 1700 | 1700 | 1880 | 1880 | 2050 | 2050 | 2050 | 2050 | 2200 |
| W | mm | 800 | 800 | 800 | 910 | 910 | 1050 | 1050 | 1050 | 1050 | 1100 |
| H | mm | 1600 | 1600 | 1600 | 1830 | 1830 | 1880 | 1880 | 1880 | 1880 | 1850 |
| Net Weight | kg | 510 | 630 | 630 | 780 | 780 | 950 | 950 | 1050 | 1050 | 1120 |
Note:
1. Specifications based on standard design conditions
2. Chilled water inlet / outlet temperature: 12°C / 7°C
3. Cooling water inlet / outlet temperature: 5°C / 35°C
4. Specifications are subject to change without prior notice
We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.
The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.
Objective: Avoid internal movement, vibration breakage, and alignments during transportation.
Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.
Objective: Dust, humidity, surface abrasion, and small mechanical shocks.
The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.
Objective: Optimal security on the outside and the requirements of the domestic and export logistics.
The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.
Objective: Loading and stable transportation on the road.
Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.
Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.
Goal: The port handling and export preparation are smooth.
After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.
The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.
Purpose: Achieve international delivery with low levels of transits.
A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.
This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.
This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.
To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.
From an operational standpoint, this approach ensures:
From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.
Yes. The chiller is needed to reject heat to the cooling tower to dispose of the heat to the atmosphere.
They must be subject to frequent water treatment to avoid scaling, corrosion and algae, as well as periodical cleaning of the condenser tube.
Flow rate, specific heat and temperature difference (ΔT) are used to determine the cooling capacity. In order to avoid short cycling, oversizing should also be avoided.
Widespread causes encompass contaminated condenser tubes, inadequate water pressure or excessive cooling water temperature.
In the cooling tower, water is lost in the form of evaporation, drift and blowdown, thus necessitating the constant supply of make-up water.
Yes. Glycol is also used in externals to prevent freezing in pipe work in order to support low temperature operations.
