Inverter scroll chillers are high-tech cooling machines that are capable of providing high accuracy in temperature regulation and high flexibility to fluctuating load profiles. They operate scroll compressors that are driven by inverters, which automatically adjust the speed to match the real-time cooling requirements instead of running only at a fixed on-off cycle. They are therefore applicable in the applications where the load variation is a common occurrence, like HVAC systems, laboratories, hospitals, commercial buildings and process cooling facilities.
The buyers normally look at such aspects as part-load performance, accuracy of temperature, noise, starting current, and responsiveness. Inverter scroll chillers are less jerky, less power spike as well as greater control of the temperature of chilled water. Their clever modulation is used to reduce the amount of energy waste, reduce wear on the components and keep the cooling output constant. Inverter scroll chillers, when correctly selected, are conducive to long operating hours, increased comfort or process stability and optimum energy utilisation in the face of diverse operating conditions.
In the current industrial and commercial cooling needs, there is a demand for capacity flexibility, accurate temperature regulation, and less power usage. Being one of the oldest Inverter Scroll Chiller Manufacturers in India, Aquatech Plus develops highly efficient cooling types that would automatically change output in accordance with actual load demand. The chillers are designed with the inverter-driven scroll compressor technology that can operate at variable speed rather than cycling at constant on and off.

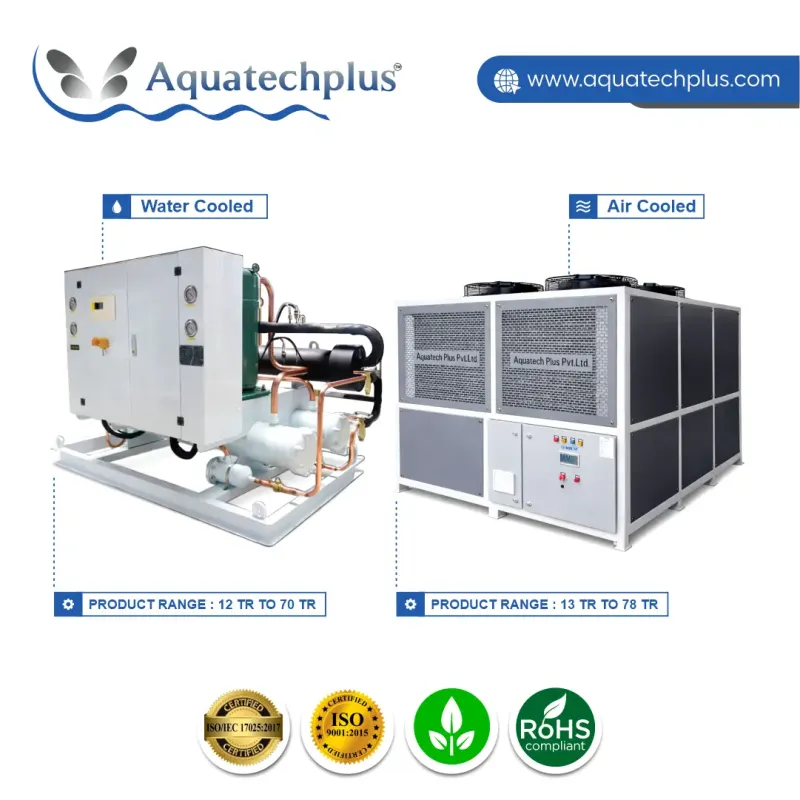

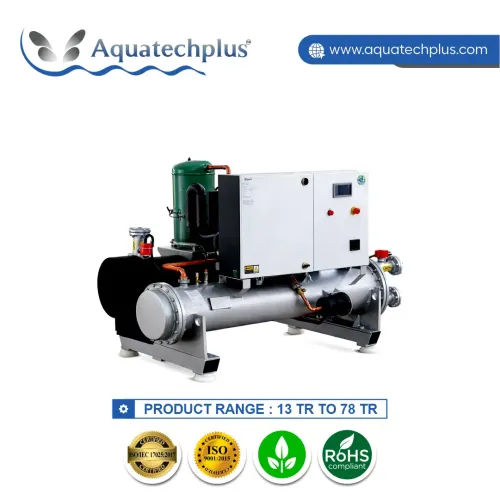

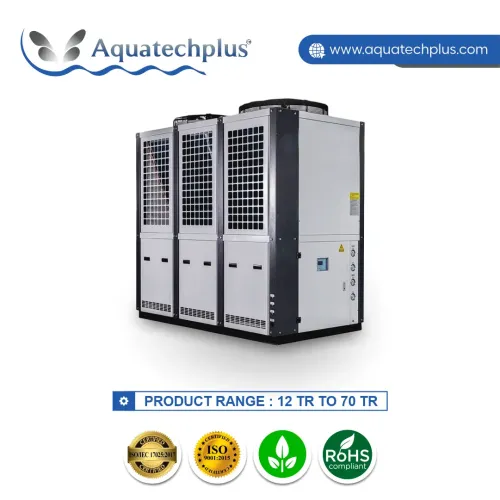

The inverter scroll chillers are offered in either air-cooled or water-cooled design and can be chosen according to site requirements, energy requirements and utility. The variable-frequency operation provides a stable temperature of chilled water, reduced electrical stress, and steady performance of the performance in partial and non-steady loads. Small size and regulated modulation mean that these chillers are used in continuous-duty industrial applications and also in precision commercial cooling applications.
The Inverter Scroll Chiller has been designed to provide dynamic operation based on the variations in thermal loads at the constant outlet temperatures. The compressor speed modulation removes the start-stop repetitive cycles, and this lowers the mechanical wear and the overall system life.
This design methodology provides:
The system has a good working capability at low load conditions and is suitable when the cooling requirement at the facilities is not constant all the way through the day.
Inverter scroll chillers are designed with energy optimisation, a concern for work and long life in mind.
Variable-Speed Inverter Scroll Compressor
Aids the capability of stepless control of capacity with low power usage and prolonged compressor life.
Optimised Heat Exchange System
Stable heat rejection, air-cooled finned condenser or water-cooled shell and tube condenser.
Advanced Control Architecture
Real-time monitoring and adaptive logic control by PLC or microprocessor.
Electrical Components of an Industrial Nature
Constructed to stay in constant operation and with built-in electrical and refrigeration safeguards.
Low Noise & Vibration Design
Improves the working conditions and machinery life.
Aquatech Plus is known to be a trusted Inverter Scroll Chiller Suppliers in India and provides systems that are set to suit the real operation environment instead of the typical capacities. Each unit is put together, tested, performance verified and dispatched.
Supplier Benefits Include:
Aquatech Plus is one of the reputable Inverter Scroll Chiller Dealers in India through an established distribution network, which provides services to customers from the time of selection up to commissioning.
Dealer Support Covers:
Inverter scroll chillers find a lot of applications in industries where the temperature stability directly influences the quality of the products and their efficiency.
They are used in:
The flexibility of inverter technology enables such systems to exist at a steady operation even in fluctuating production cycles.
Aquatech Plus, being quality-conscious, compliance-conscious, and performance-focused in the global arena, also includes itself in the list of reliable Inverter Scroll Chiller Exporters in India. The export-ready units are made to be reliable in various climates and industrial conditions.
Export Capabilities Include:
The choice of the appropriate inverter scroll chiller will be critical to the realisation of energy efficiency and the stability of the conditions of the process. Aquatech Plus has the inverter scroll chiller equipment, which is capable of being controlled precisely, operating continuously, and its reliability is long-lasting. This is done by our technical team to assess your process parameters, load profile and operating environment, to suggest a solution in line with your production goals.
Contact us to talk about your application and determine a cooling system that is designed to fit the steady industrial operation.
| Parameter | Unit | Specification |
|---|---|---|
|
Chiller Type |
— |
Inverter Scroll Chiller |
|
Cooling Method |
— |
Air Cooled / Water Cooled |
|
Cooling Capacity Range |
kW |
10 – 200 |
|
Capacity Control |
% |
20 – 100 (Stepless, Inverter Driven) |
|
Temperature Control Range |
°C |
5 – 25 |
|
Temperature Stability |
°C |
±0.2 |
|
Cooling Medium |
— |
Water / Water + Glycol |
|
Refrigerant Type |
— |
R134a / R407C / R410A |
|
Compressor Type |
— |
Inverter-Driven Scroll |
|
Compressor Start |
— |
Soft Start (Inverter) |
|
Compressor Brand |
— |
Copeland / Danfoss / Panasonic |
|
Power Supply |
— |
3 Phase, 380–415V, 50Hz |
|
Input Power Range |
kW |
3 – 45 |
|
Condenser Type |
— |
Air: Finned Copper Tube / Water: Shell & Tube |
|
Evaporator Type |
— |
Shell & Tube / Plate Heat Exchanger |
|
Chilled Water Flow Rate |
m³/h |
2 – 40 |
|
Noise Level |
dB(A) |
≤ 62 |
|
Control System |
— |
PLC / Microprocessor |
|
Communication |
— |
RS485 / Modbus (Optional) |
|
Safety Protections |
— |
HP/LP, Overload, Phase Loss, Flow Switch, Anti-Freeze |
|
Installation Type |
— |
Indoor / Outdoor |
We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.
The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.
Objective: Avoid internal movement, vibration breakage, and alignments during transportation.
Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.
Objective: Dust, humidity, surface abrasion, and small mechanical shocks.
The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.
Objective: Optimal security on the outside and the requirements of the domestic and export logistics.
The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.
Objective: Loading and stable transportation on the road.
Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.
Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.
Goal: The port handling and export preparation are smooth.
After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.
The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.
Purpose: Achieve international delivery with low levels of transits.
A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.
This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.
This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.
To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.
From an operational standpoint, this approach ensures:
From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.
An inverter scroll chiller is a cooling system that uses a scroll compressor with variable-speed inverter technology. It automatically adjusts compressor speed based on cooling demand, ensuring precise temperature control and energy savings.
The inverter controls compressor speed instead of switching it on and off. This reduces power consumption, minimizes energy loss during start-ups, and delivers only the cooling capacity required at any moment.
They are ideal for HVAC systems, commercial buildings, hospitals, hotels, data centers, laboratories, and light industrial applications where load varies throughout the day.
Inverter scroll chillers offer lower electricity bills, quieter operation, better part-load efficiency, longer compressor life, and more stable outlet water temperatures.
Most inverter scroll chillers can supply chilled water in the range of 5°C to 15°C, with special designs available for lower temperature applications.
Maintenance includes periodic inspection of electrical components, cleaning heat exchangers, checking refrigerant levels, and ensuring proper airflow or water flow. Inverter systems typically experience less wear due to smooth operation.
