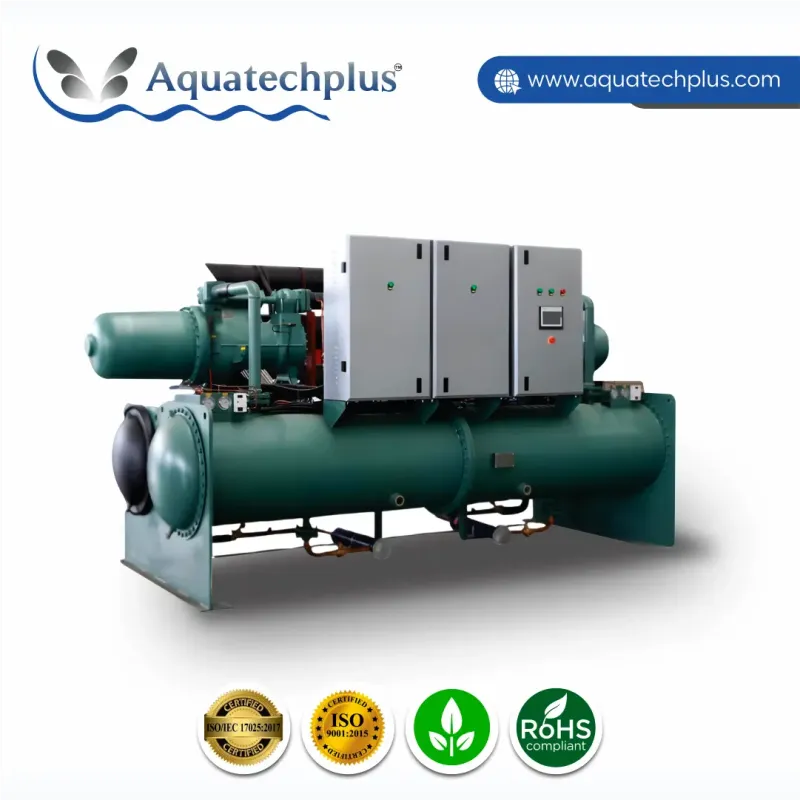

Water-Cooled Screw Chiller is a strong and energy-saving cooling system that is aimed at industrial and commercial usage that allows large capacity and constant running mode. This chiller uses a screw compressor and a water-cooled condenser to effectively transfer heat out of water and pump water to the correct temperature in various processes. Its high-quality design guarantees steady performance even when loaded to the brim, and therefore the device is suitable for the industries of plastics, pharmaceuticals, chemical processing, food and beverage production, and large-scale systems.

The Water-Cooled Screw Chiller with its sophisticated design capabilities such as variable capacity working and eco-friendly refrigerant, provides the same cooling ability with low energy usage. Being durable, low-maintenance, and long-lasting, which offers the best balance between performance, efficiency, and reliability. This has made it the ideal solution for those businesses that require sustainable and high-performance cooling of their critical processes and equipment.

Aquatech Plus is a reputable Water Cooled Screw Chiller Manufacturers in India that has high-performance chillers designed for industries which require constant chilled water, accurate temperature and efficient operation on energy. The systems are best suited to chemical plants, pharmaceutical plants, plastic line processing systems, packaging systems, and automated production systems and can operate smoothly even with a hot load.

Our water-cooled screw chillers use semi-hermetic screw compressors together with high-performance shell-and-tube heat exchangers, and need external cooling towers to offer cost-effective, large-scale industrial cooling. The purpose of these chillers is to minimise energy use, regulate water temperatures and encourage smooth operations without interruptions.

Advanced Engineering Focused Water Cooled Screw Chiller Manufacturers in India

The new chillers that we manufacture in an industrial version use modern design and control features:

Semi-Hermetic Screw Compressors: Single- or dual head models can be adjusted to accurate capacity, low vibration and long life.
Shell-and-Tube Evaporators and Condensers: designed with maximum heat transfer and low pressure drop.
PLC-Based Touch Panel Controls: Provide for real-time monitoring, temperature setpoint control and safety alarms, which include high/low pressure, phase failure, flow switch, and over-temperature protection.
Variable Frequency Drives (VFD): Save on energy during part load.
Complete Protection: antifreeze, over-current, and compressor safety functions are included in the range of the features to ensure safe long-term operation.

Our water-cooled screw chillers are one of the market leaders of such systems in industrial applications, providing our customers with reliable and accurate cooling provided by these technologies.

Industry Trusted Water Cooled Screw Chiller Suppliers in India

As business Water Cooled Screw Chiller Suppliers in India, Aquatech Plus is sure that each of their units is of high standards and works in harsh industrial conditions.

Supplier benefits include:

Determined cooling capacity and ensured water temperature supply.
Vibration minimisation and efficient operation of the screw compressor using less energy.
Corrosion-resistant heat exchangers and piping Construction is durable.
Installation, operational and maintenance documentation.
On-time delivery according to the schedules of the projects.
Standard, customised and high-capacity support.

Application Support Oriented Water Cooled Screw Chiller Dealers in India

Being familiar Water Cooled Screw Chillers Dealers in India, we offer complete technical advice and make sure that the choice of the chiller makes the best fit with your process, facility and ambient conditions.

Dealer advantages include:

Assistance with the calculation of cooling loads and the calculation of the appropriate capacity.
Recommendations on the connection of condenser water and tower.
Availability of both standard and customised industrial chiller models.
Delivery that has been inspected and performance documented.
Effective multi-unit or repeat order assistance.
Spare parts and operational servicing support.

Process Reliability Driven Water Cooled Screw Chillers Applications

Our chillers are extensive in industrial and commercial applications where a constantly chilled water supply is important:

Pharmaceutical process system and chemical reactor temperature control.
Injection moulding, extrusion and thermoforming machine cooling.
Removal of heat during packaging, printing and converting production lines.
Chilled water is used as the centralised cooling for cooling systems in factories and commercial spaces.
Check the clearing of laboratories and R&D centres.

Global Supply Ready Water Cooled Screw Chiller Exporters in India

Being reliable Water Cooled Screw Chiller Exporters in India, Aquatech Plus will ensure that chillers are tested, packaged, and installed in various climates across the world.

Export advantages include:

End-to end quality control in internal production.
Accordingly, pre-shipment thermal and electrical stability performance testing.
Safe international transportation with safe packaging.
Full documentation, inspection certificates and manuals.
Overseas commissioning and service technical support.

Connect with Aquatech Plus for Water Cooled Screw Chillers

Where industries demand constant, dependable and energy-saving chilled water, Aquatech Plus provides water-cooled screw chillers designed to be durable, provide specific temperatures and minimal energy usage. Speak with our technical team to determine capacity, ambient conditions and application requirements to have a customised industrial cooling.

Item	Unit	FCW-100WSH	FCW-135WSH	FCW-175WSH	FCW-190WSH	FCW-230WSH	FCW-255WSH	FCW-300WSH	FCW-350WSH	FCW-375WSH	FCW-415WSH
Cooling Capacity	kcal/h	86,000	116,100	155,050	163,400	197,800	219,300	258,000	301,000	322,500	356,900
Cooling Capacity	kW	100	135	175	190	230	255	300	350	375	415
Input Power	kW	22	30	37	42	51	56	65	75	80	90
Max Current	A	40	53	67	73	89	97	109	126	137	153
Power Source	3PH~380V / 415V / 480V ~ 50Hz / 60Hz (Optional: 3PH~200V / 220V)
Refrigerant	Type	R22 (R134a / R407C / R404A)
	Charge (kg)	17	22	27	33	38	43	50	55	60	66
	Control	Thermostatic Expansion Valve
Compressor	Type	Semi-Hermetic Screw
	Power (kW)	22	30	37	42	51	56	65	75	80	90
	Start Mode	Y-Δ
	Capacity Control (%)	0-33-66-100				0-25-50-75-100
Evaporator	Type	Shell and Tube (SS Plate Heat Exchanger)
Chilled Water	Flow (m³/h)	17.2	23.2	30	32.7	40	43.9	51.6	60.2	64.5	71.4
	Pressure (kPa)	35	35	35	38	40	42	42	45	45	43
	Pipe Size (inch)	3"	3"	3"	3"	4"	4"	4"	4"	4"	4"
Condenser	Type	Water-Cooled Shell & Tube
	Cooling Water (m³/h)	21	28.4	36.6	40	48.3	53.5	62.8	73	78.2	86.8
	Pipe Size (inch)	3"	3"	3"	4"	4"	4"	4"	4"	5"	5"
Safety Protection	Compressor motor thermostat, overload relay, high/low pressure switch, freeze protection, reverse phase protection, discharge gas thermostat, flow switch
Dimensions	Length (mm)	2150	2350	2450	2600	2750	2800	2800	2900	2900	3000
	Width (mm)	560	620	650	680	780	950	950	950	950	1200
	Height (mm)	1550	1650	1650	1650	1650	1800	1950	1950	1950	1980
Net Weight	kg	650	900	1050	1200	1550	1800	1950	2050	2050	2350
Running Weight	kg	820	1050	1200	1400	1800	2100	2200	2350	2380	2530

Item	Unit	FCW-470WSH	FCW-500WSH	FCW-560WSH	FCW-590WSH	FCW-610WSH	FCW-720WSH	FCW-790WSH	FCW-840WSH	FCW-940WSH
Cooling Capacity	kcal/h	425,700	447,200	490,200	533,200	550,400	645,000	705,200	756,800	851,400
Cooling Capacity	kW	495	520	570	620	640	750	820	880	990
Input Power	kW	103	109	118	127	131	151	167	177	199
Max Current	A	177	187	203	218	225	260	288	306	345
Power Source	3PH~380V / 415V / 480V ~ 50Hz / 60Hz (Optional: 3PH~200V / 220V)
Refrigerant	Type	R22 (R134a / R407C / R404A)
	Charge (kg)	82	88	94	100	110	121	132	141	165
	Control	Thermostatic Expansion Valve
Compressor	Type	Semi-Hermetic Screw
	Power (kW)	103	109	118	127	131	151	167	177	199
	Start Mode	Y-Δ
	Capacity Control (%)	0-25-50-75-100
Evaporator	Type	Shell and Tube (SS Plate Heat Exchanger)
	Chilled Water (m³/h)	85.1	89.4	98	106.6	110	129	141	151.3	170.4
	Water Pressure (kPa)	40	41	43	45	45	45	45	43	45
	Pipe Size (inch)	5"	5"	6"	6"	6"	8"	8"	10"	10"
Condenser	Type	Water-Cooled Shell & Tube
	Cooling Water (m³/h)	102.8	108.2	118.3	128.5	132.6	155	169.7	181.8	204
	Water Pressure (kPa)	48	45	46	48	46	48	48	45	47
	Pipe Size (inch)	5"	5"	6"	6"	6"	8"	8"	10"	10"
Safety Protection	Compressor motor thermostat, overload relay, high/low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch
Dimensions	Length (mm)	3000	3100	3300	3500	3800	3900	4100	4300	4500
	Width (mm)	1200	1250	1380	1380	1380	1380	1450	1480	1480
	Height (mm)	1580	1630	1630	1750	1750	1750	1780	1780	1780
Net Weight	kg	2500	2500	2650	2850	3150	3350	3620	3850	4160
Running Weight	kg	2700	3000	3100	3350	3750	4000	4300	4600	5000

FCW-WDH Water Cooled Screw Chiller Technical Specifications

Item	Unit	FCW-200WDH	FCW-270WDH	FCW-350WDH	FCW-380WDH	FCW-460WDH	FCW-510WDH	FCW-600WDH	FCW-700WDH	FCW-750WDH	FCW-830WDH
Cooling Performance
Cooling Capacity	Kcal/h	172000	232200	301000	326800	395600	438600	516000	602000	645000	713800
	kW	200	270	350	380	460	510	600	700	750	830
Input Power	kW	44	60	74	84	102	102	130	150	160	180
Max Current	A	40	53	67	73	89	89	109	126	137	153
Electrical & Refrigerant
Power Source	3PH~380V / 415V / 480V ~ 50Hz / 60Hz (Optional: 200V / 220V)
Refrigerant	R22 (Optional: R134a / R407C / R404A)
Refrigerant Charge	kg	17×2	22×2	27×2	33×2	38×2	43×2	50×2	55×2	60×2	66×2
Compressor
Type	Semi-Hermetic Screw
Compressor Power	kW	22×2	30×2	37×2	42×2	51×2	56×2	65×2	75×2	80×2	90×2
Start Mode	Y-Δ (Star-Delta)
Capacity Control	%	0-33-66-100	0-33-66-100	0-33-66-100	0-33-66-100	0-25-50-75-100
Evaporator (Shell & Tube)
Chilled Water Flow	m³/h	34	46	60	65	79	88	103	120	120	143
Water Pressure Drop	kPa	35	35	35	38	40	42	42	45	45	43
Pipe Connection	inch	4"	4"	4"	5"	5"	6"	6"	6"	8"	8"
Dimensions & Weight
Length	mm	2750	2800	2800	2950	2950	3150	3480	3480	3480	3650
Width	mm	750	780	780	810	810	850	875	875	895	1120
Height	mm	1650	1650	1650	1650	1750	1750	1850	1850	1850	1950
Net Weight	kg	1650	1800	1850	2200	2450	2650	2800	2800	3450	3750

FCW-WDH Large Capacity Water Cooled Screw Chiller Specifications

Item	Unit	FCW-990WDH	FCW-1040WDH	FCW-1140WDH	FCW-1240WDH	FCW-1280WDH	FCW-1500WDH	FCW-1640WDH	FCW-1760WDH	FCW-1980WDH
Cooling Performance
Cooling Capacity	Kcal/h	851400	894400	980400	1066400	1100800	1290000	1410400	1513600	1702800
	kW	990	1040	1140	1240	1280	1500	1640	1760	1980
Input Power	kW	206	218	236	254	262	302	334	354	398
Max Current	A	354	374	406	436	450	520	576	612	490
Electrical & Refrigerant
Power Source	3PH~380V / 415V / 480V ~ 50Hz / 60Hz (Optional: 200V / 220V)
Refrigerant	R22 (Optional: R134a / R407C / R404A)
Refrigerant Charge	kg	82×2	88×2	94×2	100×2	110×2	121×2	132×2	143×2	165×2
Compressor
Type	Semi-Hermetic Screw
Compressor Power	kW	103×2	109×2	118×2	127×2	131×2	151×2	167×2	177×2	199×2
Start Mode	Y-Δ (Star-Delta)
Capacity Control	%	0-25-50-75-100
Evaporator (Shell & Tube)
Chilled Water Flow	m³/h	170	179	196	231	220	258	282	303	340
Water Pressure Drop	kPa	40	41	43	45	45	45	45	43	45
Pipe Connection	inch	8"	8"	8"	8"	10"	10"	10"	10"x2	12"
Condenser
Cooling Water Flow	m³/h	206	216	237	257	265	310	339	364	409
Water Pressure Drop	kPa	48	45	46	48	46	48	48	45	47
Pipe Connection	inch	5"x2	5"x2	6"x2	6"x2	6"x2	10"	8"x2	10"x2	10"x2
Dimensions & Weight
Length	mm	3650	3650	3750	3750	4230	4230	4350	4350	4420
Width	mm	1120	1220	1300	1450	1380	1480	1450	1560	1650
Height	mm	1950	1950	2100	2150	2150	2250	2250	2300	2450
Net Weight	kg	3950	4100	4450	4700	5000	5250	5500	5750	6000
Running Weight	kg	4760	4770	5270	5460	5800	6100	6400	6680	6970

Packaging and Transportation Procedure for Our Complete Product Range

We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.

Step 1 : Product Fixing and Structural Stabilization

The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.

Objective: Avoid internal movement, vibration breakage, and alignments during transportation.

Step 2: Inner Protective Packing

Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.

Objective: Dust, humidity, surface abrasion, and small mechanical shocks.

Step 3: Packing of Plywood Box Heavy

The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.

Objective: Optimal security on the outside and the requirements of the domestic and export logistics.

Step 4: Loading and Inland Transportation Under Control

The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.

Objective: Loading and stable transportation on the road.

Step 5: Port Movement of Export Shipments

Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.

Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.

Goal: The port handling and export preparation are smooth.

Step 6: Overseas Shipping to Port of Destination

After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.

The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.

Purpose: Achieve international delivery with low levels of transits.

Other Packaging / Logistics Controls

Handling directions and export labeling.
Incidence of moisture and corrosion protection (where necessary)
Exportation procedures and record keeping.
Containerized shipping packaging.

Reason Our Packaging Process is Important

A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.

Disclaimer

This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.

Notable Information for Buyers & Search Engines

This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.

To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.

From an operational standpoint, this approach ensures:

Consistent quality control across all products
Reduced transit and handling risks
Standardized export readiness for domestic and international orders

From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.

Our Certificates

Udyam Registration Certificate

GST Certificate

Importer Exporter Code (IEC)

ROHS-25061702

Zed Bronze Certificate (28-Manufacture of Machinery and Equipment N.E.C.)

ISO/IEC 17025:2017

Trademark Certificate

Certificate of Incorporation

Beauro of Indian Standards

Industrial Chiller Manufacturers

Startup India

CE-25061703

Zed Bronze (11-Manufacture of Beverages)

Rifah Chamber of Commerce

Indo African Chamber of Commerce and Industry

Unified Business Permit - Nairobi

Kenya Revenue Authority - Pin Certificate

Certificates of Compliance - Nairobi

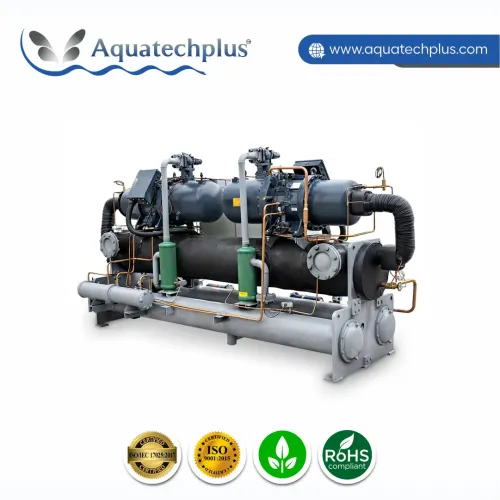

Frequently Asked Questions – Water Cooled Screw Chiller

What industries need Water Cooled screw chiller?

The Vietnam HVAC industry, large-scale manufacturing, and the food and beverage, chemical, and pharmaceutical industries utilize screw chillers. These industries require significant constant cooling, and screw chillers run continuously.

What Characteristics Make Water Cooled Screw Chiller Best for Large-Scale Applications?

For large-scale applications, water-cooled screw chillers are best for providing long service life. Water-cooled screw chillers are very highly energy efficient, operate silently, perform well under low operating conditions, and lead to optimal cooling. In addition, they provide consistent cooling, which makes them ideal for large-scale applications needing large amounts of cooling.

Stable Performance – Offers dependable cooling regardless of changing and low load conditions
High Cooling Capacity – Perfect for applications that demand massive cooling for extended durations
Reliable Temperature Control – Achieves and retains large system temperature uniformity
Lower Operating Costs – Efficient heat rejection and lower power usage minimize operational costs long-term

What factors affect the capacity of water Cooled screw chiller?

Some of the factors affecting the capacity of water-cooled screw chillers include operating conditions, heat load, chiller inlet and outlet water temperatures, and specific process requirements. In addition to capacity selection, energy, process requirements, and overall efficiency are factors relating to capacity selection.

Do water cooled screw chiller require Cooling towers?

Yes. To remove heat from the screw chiller condenser, water-cooled screw chillers require cooling towers. This feature is even more important because the system uses high continuous cooling.

Why are water cooled screw chillers preferred for large cooling capacities?

Water cooled screw chillers provide higher efficiency and stable performance at large capacities by using water for heat rejection, making them ideal for continuous heavy-duty operations.

What maintenance is required for a water cooled screw chiller?

Regular maintenance includes condenser tube cleaning, cooling tower water treatment, pump inspection, and monitoring operating parameters to ensure long equipment life and efficient performance.

Warranty & Support

We carry a specified warranty and effective after sales services to all goods provided by us. Our warranty and service system will be aimed at long-term performance, reliability in terms of work, and peace of mind of our clients, both domestic and international.

Warranty Coverage

Every product has a standard warranty of manufacturing defects dating back to the dispatch date or the date of installation, as existing. The warranty includes the defects to the quality of material and workmanship in the normal operation condition.

There are various warranty terms based on the product category, model, application and environment of use. Specifics on warranty period and coverage are provided in detail during the confirmation of orders or issue of invoice.

What the Warranty Includes

Workmanship and manufacturing issues
Standard operating functional problems
Substitution/ repair of faulty parts (under evaluation)

Warranty Exclusions

Warranty is not applicable on damages caused by:

Misinstallation or mishandling.
Fluctuations in electricity, abuse or illegal alterations.
Normal depreciation or replacement components.
Unintentional harm or outside force.

Technical Support and Assistance

Our technical support provides our clients with instructions on how to install, answer technical questions as well as basic troubleshooting. Depending on where the project is located, support is accomplished by providing documentation, remote assistance or by organizing services with service partners.

Assistance to Home and International Customers

We assist both domestic and foreign clients with well-organized contact and export documentation. In the case of international customers, technical support and service management are offered remotely to have a comfortable functioning and prompt problem resolution.

Response and Resolution of Service

There is a process in which service requests are processed. When we get a support request, we examine the problem and determine the warranty eligibility and suggest a remedy. The response timelines can be different depending on the product, location and availability of the components.

Important Note

The above warranty and support terms are the standard policy which we use in our whole product line. Particular product-level warranty information might vary and are provided independently when taking orders.

Notable Information for Buyers & Search Engines

This Warranty & Support section represents our standard company-wide policy and is consistently applied across our complete product range. The content is intentionally displayed on multiple product pages to communicate uniform warranty coverage, service terms, and support procedures.

While the core policy remains the same, actual warranty duration, coverage scope, and service conditions may vary by product model, application, and operating environment. Product-specific warranty details are shared separately at the time of order confirmation or documentation.
