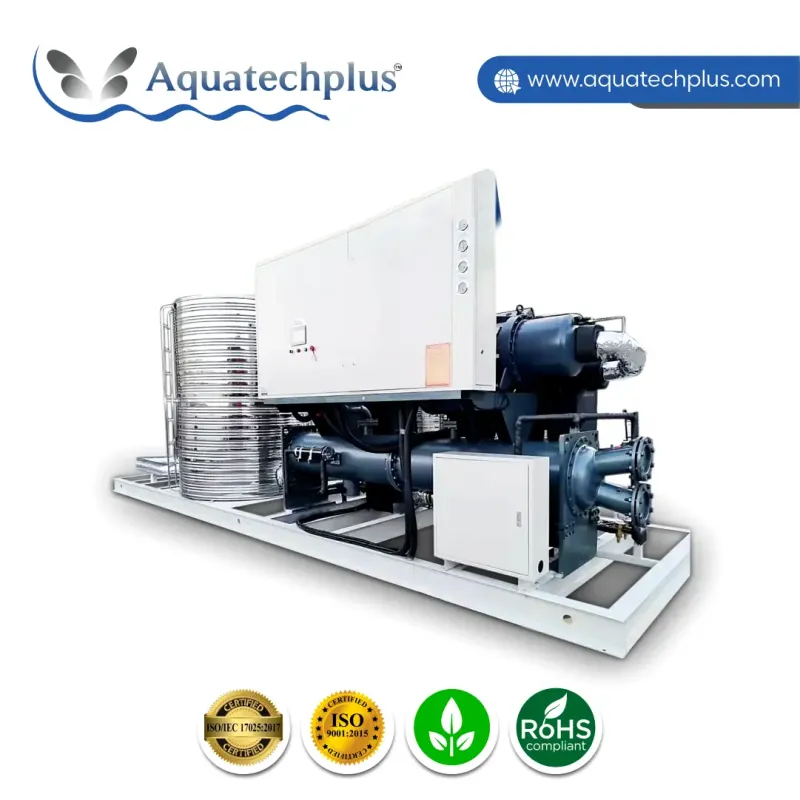

Water Cooled Glycol Chiller is a reliable cooling device, which is applied in the process where low temperature, as well as continuous operation is necessary. It also operates on a glycol blend that assists in averting freezing and maintaining cold temperature throughout extended working periods. The cooling is done by use of a water-cooled condenser, which lets the system operate efficiently and be able to sustain heavy loads with ease. This chiller can be applied to process lines, which require constant cooling of products, including manufacturing of products, processing liquid items, storage facilities with controlled temperatures, and other tasks that are temperature sensitive.
It is constructed with trusted compressors, efficient heat exchangers and easy to use controls in order to provide a smooth performance at a low energy consumption. Water Cooled Glycol Chiller has adjustable temperature control and a higher quality of construction, so it can be a feasible option when industrial cooling is required on large scale and demanding.
Aquatech Plus is a specialised Water Cooled Glycol Chiller Manufacturers in India, specialising in the supply of low-temperature process cooling systems that have been designed to be applied in large temperature environments where stable performance under sub-zero conditions is required. These chillers are designed in such a way that they can circulate glycol as the cooling medium, and they can work reliably at temperatures very low below the freezing point without the danger of damaging the system.
Aquatech Plus is a company operating based on a structured Water Cooled Glycol Chiller Suppliers in India, whereby every system they dispatch is of a certain performance standard.
Supplier-level processes focus on:
All units are ready to:
Supplier benefits include:
Aquatech Plus is a reliable Water Cooled Glycol Chiller Dealers in India that has an established network of distributors.
Dealer support includes:
Aquatech Plus is an international market exporter of Water Cooled Glycol Chiller Exporters in India and a supplier of equipment ready to be transported and installed abroad.
Export strengths include:
Aquatech Plus offers water-cooled glycol chiller systems designed to accommodate:
When customers collaborate with technical staff, the systems are configured according to production targets, process conditions, temperature requirements, and site infrastructure.
Get in touch to review your application and find a low-temperature cooling solution reliable for industrial operations.
| Item | Parameter | Temp | Unit | FCL-3WL | FCL-5WL | FCL-6WL | FCL-8WL | FCL-10WL | FCL-12WL | FCL-15WL | FCL-20WL | FCL-25WL | FCL-30WL | FCL-40WL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity (kW – 50Hz / 60Hz) | ||||||||||||||
| Cooling Capacity | -10°C | kW | 4.5 / 5.4 | 7.7 / 9.3 | 9.1 / 11 | 11.7 / 14.1 | 16.1 / 19.3 | 19.1 / 22.9 | 23.3 / 28 | 32.2 / 38.6 | 38.2 / 45.8 | 46.6 / 56 | 62.5 / 75 | |
| -20°C | kW | 2.7 / 3.24 | 4.1 / 4.92 | 5.3 / 6.24 | 8.1 / 9.72 | 9.8 / 11.76 | 10.6 / 12.72 | 13.6 / 16.32 | 20.4 / 24.48 | 25 / 28.8 | 29.4 / 35.28 | 38.5 / 46.2 | ||
| -30°C | kW | 1.31 / 1.57 | 2.1 / 2.52 | 2.8 / 3.36 | 4.3 / 5.36 | 4.9 / 5.88 | 5.6 / 6.72 | 7.9 / 9.48 | 11.2 / 13.44 | 13.7 / 16.44 | 16.1 / 19.32 | 21.2 / 25.44 | ||
| Condenser (Shell & Tube) | ||||||||||||||
| Cooling Water | -10°C | m³/h | 1.0 / 1.21 | 1.7 / 2.06 | 2.03 / 2.44 | 2.62 / 3.14 | 3.6 / 4.32 | 4.27 / 5.12 | 5.2 / 6.24 | 7.23 / 8.67 | 8.54 / 10.25 | 10.4 / 12.5 | 14 / 16.8 | |
| Outlet Pipe | inch | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | 2½" | 3" | 3" | ||
| Evaporator | ||||||||||||||
| Chilled Water | -10°C | m³/h | 0.77 / 0.93 | 1.33 / 1.59 | 1.56 / 1.88 | 2.01 / 1.73 | 2.77 / 3.32 | 3.28 / 3.94 | 4.0 / 4.8 | 5.56 / 6.65 | 6.57 / 7.89 | 8.1 / 9.62 | 10.75 / 12.3 | |
| Inlet / Outlet | inch | 1" | 1" | 1" | 1" | 1½" | 1½" | 2" | 2" | 2½" | 2½" | 3" | ||
| Electrical & Mechanical | ||||||||||||||
| Input Power | kW | 3 | 4.5 | 5.25 | 6.75 | 8.6 | 10.1 | 12.8 | 14.56 | 21 | 26.5 | 34 | ||
| Max Current | A | 7.5 | 11 | 13 | 16.5 | 21 | 25 | 31 | 42 | 51 | 64 | 83 | ||
| Power Source | 3PH~380V / 415V / 480V ~ 50Hz / 60Hz (3PH~200V / 220V) | |||||||||||||
| Refrigerant | Type | R22 (R404A / R507) | ||||||||||||
| Compressor | Type | Hermetic Scroll (Piston) | ||||||||||||
| Dimensions & Weight | ||||||||||||||
| Length | mm | 910 | 910 | 910 | 1250 | 1250 | 1250 | 1600 | 1600 | 1950 | 1950 | 2000 | ||
| Width | mm | 480 | 480 | 480 | 680 | 680 | 680 | 750 | 750 | 850 | 850 | 980 | ||
| Height | mm | 1000 | 1000 | 1000 | 1380 | 1380 | 1380 | 1600 | 1600 | 1700 | 1700 | 1700 | ||
| Net Weight | kg | 130 | 150 | 180 | 230 | 260 | 330 | 420 | 460 | 680 | 720 | 870 | ||
We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.
The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.
Objective: Avoid internal movement, vibration breakage, and alignments during transportation.
Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.
Objective: Dust, humidity, surface abrasion, and small mechanical shocks.
The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.
Objective: Optimal security on the outside and the requirements of the domestic and export logistics.
The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.
Objective: Loading and stable transportation on the road.
Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.
Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.
Goal: The port handling and export preparation are smooth.
After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.
The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.
Purpose: Achieve international delivery with low levels of transits.
A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.
This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.
This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.
To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.
From an operational standpoint, this approach ensures:
From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.
At low or sub-zero temperatures, the system is frozen with the help of glycol. It prevents ice formation and thermal damages of heat exchangers, pipes and pumps.
Water-cooled glycol chillers are indicated when the cooling load is large and inelastic. They give improved efficiency and consistency during processes at low temperatures in industries.
Depending on the concentration of the glycol and the design of the system, the temperature of the standard chilled water can be dropped to as low as -30°C or below. They are applicable in selective and high-demand low temperatures.
An increase in glycol concentration increases the freeze protection and decreases the heat transfer efficiency. Appropriate choice strikes the right balance between low-temperature performance and optimum energy performance.
This needs a cooling tower, a condenser water pump and a decent water treatment system. These elements guarantee effective rejection of heat as well as durability.
They find application in pharmaceuticals, chemical processing, food and beverage and speciality manufacturing. These industries need constant cooling that is at low or below-zero temperatures.
We carry a specified warranty and effective after sales services to all goods provided by us. Our warranty and service system will be aimed at long-term performance, reliability in terms of work, and peace of mind of our clients, both domestic and international.
Every product has a standard warranty of manufacturing defects dating back to the dispatch date or the date of installation, as existing. The warranty includes the defects to the quality of material and workmanship in the normal operation condition.
There are various warranty terms based on the product category, model, application and environment of use. Specifics on warranty period and coverage are provided in detail during the confirmation of orders or issue of invoice.
Warranty is not applicable on damages caused by:
Our technical support provides our clients with instructions on how to install, answer technical questions as well as basic troubleshooting. Depending on where the project is located, support is accomplished by providing documentation, remote assistance or by organizing services with service partners.
We assist both domestic and foreign clients with well-organized contact and export documentation. In the case of international customers, technical support and service management are offered remotely to have a comfortable functioning and prompt problem resolution.
There is a process in which service requests are processed. When we get a support request, we examine the problem and determine the warranty eligibility and suggest a remedy. The response timelines can be different depending on the product, location and availability of the components.
The above warranty and support terms are the standard policy which we use in our whole product line. Particular product-level warranty information might vary and are provided independently when taking orders.
This Warranty & Support section represents our standard company-wide policy and is consistently applied across our complete product range. The content is intentionally displayed on multiple product pages to communicate uniform warranty coverage, service terms, and support procedures.
While the core policy remains the same, actual warranty duration, coverage scope, and service conditions may vary by product model, application, and operating environment. Product-specific warranty details are shared separately at the time of order confirmation or documentation.
>
