Water-cooled chillers are centralised cooling systems that are aimed to serve facilities with several processes that need to be stable and without interruption of the temperature. They combine a chiller unit, cooling tower, and condenser water loop to facilitate the effective removal of heat during long working hours. They are usually applied in large plants, business complexes and industrial installations in which the cooling needs are constant all day.
Another parameter that buyers may set is the layout of the system, space planning, water quality requirements, and integration with the existing infrastructure. Water chillers enable more heating loads to be served with a reduced footprint, and their operation is independent of changes in the outdoor air temperature. When installed and managed correctly, they offer predictable cooling performance, operational stability and long-term durability on critical applications.

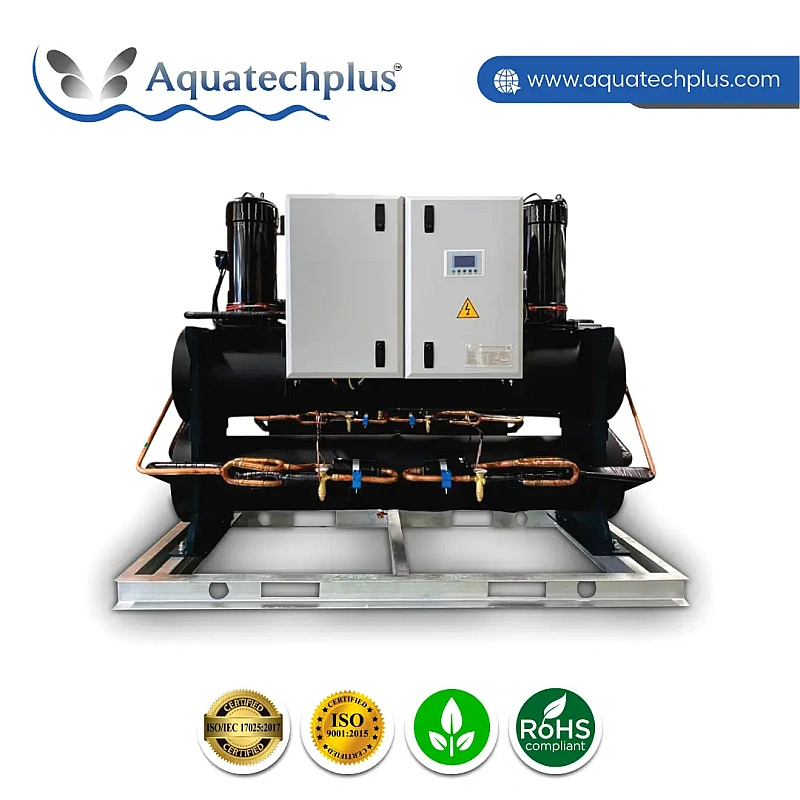

Water Cooled Chiller is a high-performance industrial cooling system that regulates the removal of heat from processes and machinery through water circulation and a cooling tower. It is developed to be continuously operated and heavy-duty in nature, with a high level of stabilized temperature pattern. These chillers are more efficient, have low operating costs, are reliable in performance, and are suited for manufacturing plants, process industries, and high-cooling-need HVAC systems that need uniform cooling in harsh environments.
Water Cooled Chiller Manufacturers in India design and produce cooling systems that are highly efficient to be used on a constant industrial and commercial basis. These manufacturers target precision engineering, energy saving, and extended service life as a way of complying with challenging process cooling conditions.
Since the heat is not controlled, it may cause loss of production, failure of the machinery, and higher maintenance expenses. A properly designed water-cooled chiller assists industries to attain a cooling process with reliability and efficiency by:
The water-cooled chillers find a wide application in the plastics, pharmaceuticals, chemical, food processing, HVAC systems, data centers, power plants, and large commercial facilities.
Screw chillers are made to match medium to large cooling loads and constant operation. They are efficient in part-loading and can be applied to processes in industries having different
cooling requirements.
Ideally suited for large factories, process cooling plants, and central HVAC systems.
Water Cooled Scroll Chiller
Scroll chillers are smaller, efficient, and reliable, and therefore are convenient in moderate cooling loads with less noisy operation.
Ideally suited for commercial structures, hospitals, and small-scale industry.
Water Cooled Centrifugal Chiller
Centrifugal chillers are deployed in high-capacity applications with high requirements; maximum efficiency is required, and low operating cost.
Applicable in: Airports, huge shopping malls, district cooling, and power-intensive plants.
Suppliers being good Water Cooled Chiller Suppliers in India make sure that quality-tested chillers are available in time to cater to industrial, commercial, and infrastructure works. They supply EPC contractors, OEMs, factories, and HVAC consultants with reliable deliveries and technical advice.
Suppliers aim at providing a variety of capacity choices, competitive prices, professional choice support, and consistent coordination of after-sales to guarantee that the performance of a system will be sustained.
A water cooled chiller has a stable refrigeration cycle that maintains continuous cooling:
Water-cooled chillers are offered with a large variety of cooling capacities to meet various industrial and HVAC needs. They also work effectively within the normal chilled water
temperature, and they accommodate different types of compressor technology, including screw compressors, scroll compressors, reciprocating compressors, and centrifugal compressors.
Such systems are refrigerated with industry-accepted refrigerants such as R134a, R407C, R410A, R404A and R22, which will meet performance and environmental requirements. It has single-phase and three-phase power setups based on capacity and application.
Water Cooled Chiller Dealers in India deal exclusively in the provision of true, factory-tested systems, as well as giving application-based recommendations. Dealers guide the customers to the appropriate chiller configuration depending on the load in cooling, operating conditions, and the environment of installation.
Some of the industries that dealers serve include the manufacturing plant, pharmaceutical unit, food processing plant, commercial HVAC projects, and data-driven infrastructure.
Water chillers are popular throughout:
Water Cooled Chiller Exporters in India are also increasing their presence in India, which can provide high-performance cooling systems in the world markets. Export-oriented chillers are made to suit international requirements, climatic conditions, and technical needs of projects.
Exporters take care of the entire logistics, documents, wrapping, and compliance to guarantee effective and safe cross-border delivery.
The reason as to why water cooled chillers are the preferred ones used in industries.
Water cooled chillers are mostly selected where one needs to have continuous working, constant temperatures, and efficiency in energy consumption. Their heat rejection system is water-based hence a high-load environment is guaranteed to perform better.
Key Points:
The right Water Cooled Chiller is an important selection that can guarantee efficiency, reliability, and cost control in the long run. An adequately chosen system guarantees a consistent level of cooling as well as low operating time.
You can also contact us now to talk about your cooling needs and get a professionally fitted water-cooled chiller to fit your industrial operation.
| Model | MG-30WSL | MG-40WSL | MG-50WSL | MG-60WSL | MG-70WSL | MG-90WSL | MG-100WSL |
|---|---|---|---|---|---|---|---|
|
Cooling Capacity (kW) |
45.4 |
61.9 |
81.2 |
88.5 |
107.8 |
147.3 |
161.2 |
|
Power Supply |
220V / 380V / 415V / 460V, 50Hz / 60Hz, 3 Phase |
||||||
|
Refrigerant Type |
R22 / R407C / R404A |
||||||
|
Expansion Control |
Thermostatic Expansion Valve |
||||||
|
Outlet Temperature |
–10°C |
||||||
|
Compressor Type |
Semi-closed Screw, Scroll, Recipe |
||||||
|
Compressor Power (kW) |
21.4 |
28.2 |
35.4 |
38.8 |
47.2 |
60.9 |
67 |
|
Starting Method |
Y-Δ (Star-Delta) |
||||||
|
Capacity Control |
25% – 50% – 75% – 100% |
||||||
|
Evaporator Type |
High-efficiency Copper Tube Shell & Tube |
||||||
|
Evaporator Flow (m³/h) |
7.8 |
10.6 |
13.9 |
15.2 |
18.5 |
25.3 |
27.6 |
|
Evaporator Inlet/Outlet |
DN50 |
DN65 |
DN80 |
DN80 |
DN80 |
DN100 |
DN100 |
|
Condenser Type |
High-efficiency Threaded Copper Tube Shell & Tube |
||||||
|
Condenser Flow (m³/h) |
16.8 |
22.8 |
29.5 |
32.2 |
39.3 |
53 |
58 |
|
Condenser Inlet/Outlet |
DN50 |
DN65 |
DN80 |
DN80 |
DN80 |
DN100 |
DN100 |
|
Protection System |
Compressor overheat, high/low pressure, phase sequence/missing, flow rate & anti-freeze protection |
||||||
|
Length (mm) |
2300 |
2300 |
2500 |
2500 |
2500 |
3200 |
3500 |
|
Width (mm) |
750 |
750 |
750 |
750 |
800 |
800 |
900 |
|
Height (mm) |
1500 |
||||||
|
Noise Level (dB) |
73.1 |
73.7 |
74.8 |
78.4 |
79 |
80.4 |
80.4 |
|
Weight (kg) |
660 |
700 |
800 |
975 |
1000 |
1400 |
1600 |
We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.
The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.
Objective: Avoid internal movement, vibration breakage, and alignments during transportation.
Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.
Objective: Dust, humidity, surface abrasion, and small mechanical shocks.
The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.
Objective: Optimal security on the outside and the requirements of the domestic and export logistics.
The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.
Objective: Loading and stable transportation on the road.
Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.
Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.
Goal: The port handling and export preparation are smooth.
After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.
The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.
Purpose: Achieve international delivery with low levels of transits.
A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.
This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.
This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.
To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.
From an operational standpoint, this approach ensures:
From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.
Water cooled chillers are to be equipped with the access to the cooling towers and water lines. Maintenance free and correct system plumbing design allows effective heat rejection and system continuity.
HVAC systems result in the savings of energy, which can be explained by the fact that the water cooled chillers operate at reduced cooling temperatures. Through this, chillers will be more efficient, less energy consuming and can more effectively cool in higher temperatures.
The life of a water cooled chiller is determined by the water quality, conditioning of the system and load, the work hours and the maintenance practices. Tilting these elements maintains systems and ensures that cooling remains optimum.
Although water cooled chillers are expensive to install, operating expenses are normally low, as water cooled chillers are more energy efficient. Over tier operating costs and minimized energy consumption would be more valuable to large commercial scale cooling.
Water-cooled chillers reject heat through water, which absorbs heat better than air, resulting in higher efficiency, lower energy consumption, and stable performance at high capacities.
Installation requires a cooling tower, condenser water pumps, proper water treatment system, and sufficient space for heat rejection equipment to ensure reliable and long-term operation.
We carry a specified warranty and effective after sales services to all goods provided by us. Our warranty and service system will be aimed at long-term performance, reliability in terms of work, and peace of mind of our clients, both domestic and international.
Every product has a standard warranty of manufacturing defects dating back to the dispatch date or the date of installation, as existing. The warranty includes the defects to the quality of material and workmanship in the normal operation condition.
There are various warranty terms based on the product category, model, application and environment of use. Specifics on warranty period and coverage are provided in detail during the confirmation of orders or issue of invoice.
Warranty is not applicable on damages caused by:
Our technical support provides our clients with instructions on how to install, answer technical questions as well as basic troubleshooting. Depending on where the project is located, support is accomplished by providing documentation, remote assistance or by organizing services with service partners.
We assist both domestic and foreign clients with well-organized contact and export documentation. In the case of international customers, technical support and service management are offered remotely to have a comfortable functioning and prompt problem resolution.
There is a process in which service requests are processed. When we get a support request, we examine the problem and determine the warranty eligibility and suggest a remedy. The response timelines can be different depending on the product, location and availability of the components.
The above warranty and support terms are the standard policy which we use in our whole product line. Particular product-level warranty information might vary and are provided independently when taking orders.
This Warranty & Support section represents our standard company-wide policy and is consistently applied across our complete product range. The content is intentionally displayed on multiple product pages to communicate uniform warranty coverage, service terms, and support procedures.
While the core policy remains the same, actual warranty duration, coverage scope, and service conditions may vary by product model, application, and operating environment. Product-specific warranty details are shared separately at the time of order confirmation or documentation.
>
>
