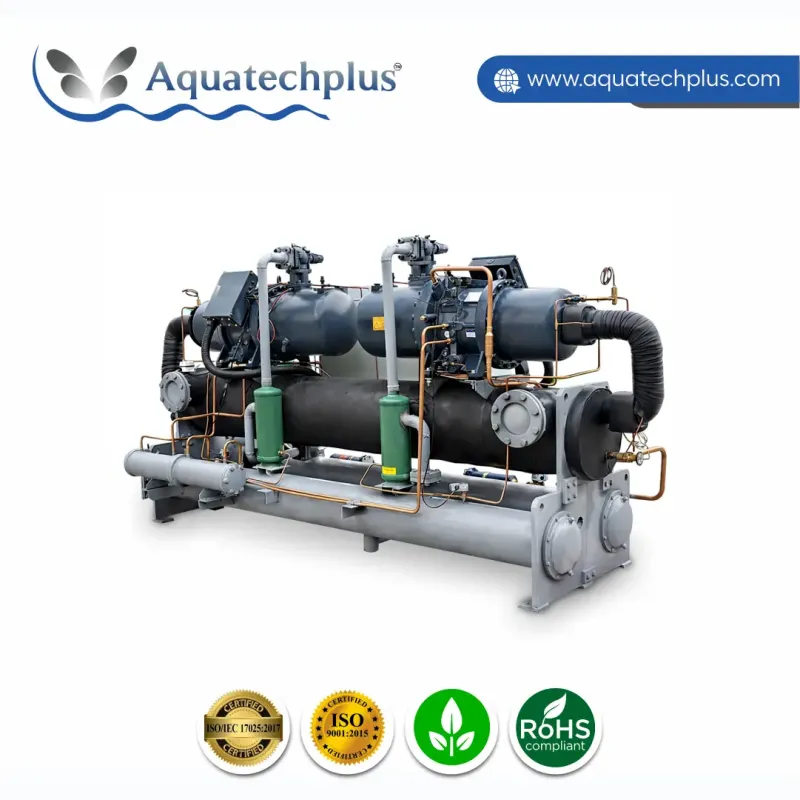

A Water Cooled Glycol Screw Chiller is created to use in a facility that has high demands for cooling reliability and maintaining stable operation at heavy load conditions. It employs a screw compressor and glycol-based coolant to provide uniform cooling even where the normal water chillers are not likely to work well. The glycol blend does not freeze and enables the system to work effectively in low or sub-zero temperature process demands.
The heat rejection is water-cooled, important to provide high energy efficiency and constant operation, and it is appropriate that this chiller can operate continuously as part of the industry. Applications of these systems are extensively seen in chemical processing, pharmaceuticals, food and beverage plants, plastic processing and specialised industrial applications. Designed with reliability and precision, Water Cooled Glycol Screw Chillers are used to provide precise and accurate temperature control, lower operational stress, and long-term reliability in harsh conditions of processes.
Industrial processes that are conducted under low or sub zero temperatures conditions need constant and reliable, high-capacity cooling. A water-cooled glycol Screw Chiller is designed to provide controlled cooling where conventional water chillers cannot be used because of the threat of freezing or varying thermal loads.
Being one of the seasoned Water Cooled Glycol Screw Chiller Manufacturers in India, Aquatech Plus incorporates strong industrial cooling systems that incorporate glycol-based circulation with screw compressor technology that guarantees uninterrupted supply, care and accuracy of temperatures, and extended service. These chillers are designed with operations in the continuous-duty cooling and high load stability, in addition to the efficiency of operation despite a severe industrial operating environment.
Water Cooled Glycol Screw Chillers make use of glycol as the cooling medium, which allows safe transfer of heat at temperatures lower than that of water freezing. The screw compressor provides continuous capacity modulation, which is smooth and the system is very appropriate to variable and heavy process loads.
The water-cooled condenser system enables the efficient rejection of heat by means of cooling towers and leads to energy efficiency and stable operation with large capacity installations.
Water Cooled Glycol Screw Chillers are very common in industries where the stability of the process temperature is required to maintain the quality of the product, in addition to the safety of the equipment.
These chillers favor steady production ratio because they stabilise the process temperatures inside the continuous load situations.
The Glycol Screw Chillers are water-cooled items that are developed in terms of life span, thermal precision and durability.
Screw Compressor Technology
Provides constant operation and load modulation as well as decreased mechanical wear.
Glycol-Compatible Heat Exchange System
Stops freezing and maintains even heat transfer during low temperature conditions.
Water-Cooled Design Condenser
Offers large-capacity industrial systems with high-efficiency heat rejection.
Advanced Control Architecture
Real-time monitoring and dynamic diagnostics of the PLC with exact temperature control.
Electrical and Safety Systems used in industries
The shield system against unnatural operating conditions.
Being one of the reliable Water Cooled Glycol Screw Chiller Suppliers in India, Aquatech Plus provides its customers with application-specific systems and not the standard catalogue models. All chillers are designed keeping in mind the real process load, temperature demand, and location.
Each system is tested in the factory to test its performance so as to guarantee operational reliability and safety.
Aquatech Plus is one of the trusted Water Cooled Glycol Screw Chiller Dealers in India with an established distribution network that gives complete customer services in terms of systems, instrumentation and commissioning.
Aquatech Plus is also a reputable company with a good emphasis on quality, as well as global compliance, as an Exporter of Water Cooled Glycol Screw Chiller in India. Export-ready systems are systems that have been designed to operate effectively in a variety of climatic and industrial conditions.
The choice of the appropriate Water Cooled Glycol Screw Chiller is the key to the stability of the processes, protection of the equipment, and its subsequent high-performance in the long term. Aquatech Plus offers glycol screw chiller systems that are engineered to be used in continuous performance by industries and to have accurate temperature control. We assess the conditions of your process, thermal load, working environment and production goals and suggest a cooling system to suit your operation.
Get in touch and explain what you need, and install a high-quality performance industrial cooling system that assures performance.
| Item | Parameter | Temp | Unit | FCWS-40WSL | FCWS-50WSL | FCWS-60WSL | FCWS-70WSL | FCWS-80WSL | FCWS-90WSL | FCWS-100WSL | FCWS-120WSL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity | |||||||||||
| Cooling Capacity | Temp | -10°C | kW | 72 | 93.8 | 102 | 124 | 136 | 161 | 186 | 222 |
| -20°C | kW | 48 | 63 | 69 | 84 | 92 | 108 | 125 | 149 | ||
| -30°C | kW | 29.5 | 41.3 | 49 | 60 | 66 | 78 | 90 | 107 | ||
| Input Power | kW | 30 | 38 | 42 | 51 | 56 | 63 | 73 | 88 | ||
| Max Current | A | 91 | 121 | 128 | 153 | 171 | 193 | 220 | 268 | ||
| Refrigerant | |||||||||||
| Refrigerant | Type | R22 / R404A | |||||||||
| Charge | kg | 28 | 36 | 43 | 50 | 58 | 65 | 72 | 86 | ||
| Compressor | |||||||||||
| Compressor | Power | kW | 30 | 38 | 42 | 51 | 56 | 63 | 73 | 88 | |
| Start Mode | Y-Δ | ||||||||||
| Capacity Control | % | 0-25-50-75-100 | |||||||||
| Evaporator | |||||||||||
| Chilled Water | -10°C | m³/h | 12.4 | 16.1 | 17.5 | 21.3 | 23.4 | 27.7 | 32 | 38.2 | |
| -20°C | m³/h | 8.3 | 10.8 | 11.9 | 14.4 | 15.8 | 18.6 | 21.5 | 25.6 | ||
| -30°C | m³/h | 5.1 | 7.1 | 8.4 | 10.3 | 11.3 | 13.4 | 15.5 | 18.4 | ||
| Dimensions & Weight | |||||||||||
| Length | mm | 2500 | 2550 | 2600 | 2750 | 2800 | 2800 | 2900 | 3000 | ||
| Width | mm | 780 | 780 | 780 | 780 | 950 | 950 | 950 | 1200 | ||
| Height | mm | 1650 | 1650 | 1650 | 1650 | 1800 | 1950 | 1950 | 1580 | ||
| Net Weight | kg | 920 | 1100 | 1250 | 1600 | 1850 | 1900 | 2100 | 2550 | ||
| Running Weight | kg | 1050 | 1260 | 1430 | 1850 | 2150 | 2200 | 2400 | 2750 | ||
We have a uniform workflow in packaging and logistics that is export-wise, which prepares all our products except that they are safe in handling and delivery with no damages in India and other countries. Every phase is also thought out to cushion equipment against vibration, impact, and moisture risks in addition to long-distance transportation risks. The same is done to water chillers, air chillers and all other products that we produce and supply.
The process starts with mechanical repair of the unit of the product. The industrial quality fastening is used in all internal assemblies, critical parts, piping, and electrical parts. Moving components are fixed, and vibration-sensitive sites are fixed to avoid the mechanical stress during the transportation.
Objective: Avoid internal movement, vibration breakage, and alignments during transportation.
Once the repair is done the product is inner-packed with moisture-proof and shock absorbing materials. Foam padding, stretch film and cushioning materials are used as protective layers to cover all the exposed areas and all those components which are sensitive.
Objective: Dust, humidity, surface abrasion, and small mechanical shocks.
The product is packed in a specially designed heavy-duty plyboard box which is produced depending on its size and weight. The casing of the plywood is strengthened to resist the weights of the stacking, forklift operation and the transportation strain over long distances. When exporting goods, the packing is done to comply with the shipping and container loading requirements by the international community.
Objective: Optimal security on the outside and the requirements of the domestic and export logistics.
The product is loaded to the trucks with the use of cranes or forklifts, in accordance with good lifting and load-sharing practices. The delivery is then by road under conditions of control. In the case of domestic clients, the truck will go straight to the facility of the customer.
Objective: Loading and stable transportation on the road.
Whereas in international deliveries, the shipment is taken out of our plant to the Indian port. Pre-port entry All the export documentation, labeling and compliance checks are done before port entry.
Our logistics partners are reputable and trusted individuals like EMS, DHL Express, and FedEx Express who help us to have an easy time moving the ports and handling the exports.
Goal: The port handling and export preparation are smooth.
After clearance in the port, the product is delivered through sea freight into the destination port of the client. The packaging is to maintain a long transit period, container handling and a fluctuating weather pattern.
The international deliveries are also arranged with the help of the existing world logistics systems, the EMS, DHL Express and FedEx Express, which guarantee the safe and timely delivery.
Purpose: Achieve international delivery with low levels of transits.
A clear packaging and transportation procedure would assure that all products will be delivered to the clients in working conditions, lessen installation and commission problems, minimize the risk of transit damage, and facilitate hassle-free domestic and foreign delivery.
This is our standard operating procedure and is used in the process of packaging and transportation of all our products. Although the central process is the same, a different method can be used to pack the products, depending on the product size, weight and the destination to which the product is to be shipped.
This packaging and transportation workflow represents our standard operating process and is uniformly followed across our entire product range. The steps outlined above are not product-specific but define our company-wide logistics and export handling standards.
To maintain consistency, safety, and compliance, this process is intentionally displayed across all relevant product pages under the Packaging & Transportation section. While the framework remains the same, actual packing materials, box dimensions, and handling methods may vary depending on product size, weight, and shipment destination.
From an operational standpoint, this approach ensures:
From an SEO and documentation perspective, this section is used to clearly communicate our established logistics protocol, not to repeat marketing content. Each product page focuses on its unique specifications and applications, while this section defines our common logistics standards.
A water-cooled glycol screw chiller is an industrial cooling system that uses a glycol-water mixture and a screw compressor to provide reliable cooling at low or sub-zero temperatures. It is commonly used where precise and continuous cooling is required.
Glycol prevents freezing at low temperatures and protects the system from pipe damage. It also helps maintain stable cooling performance in applications requiring temperatures below 0°C.
These chillers are widely used in chemical processing, pharmaceuticals, food & beverage plants, plastic molding, cold storage, breweries, and industrial process cooling.
Screw compressors offer high efficiency, smooth continuous operation, low vibration, and long service life. They are ideal for medium to large cooling capacities and 24/7 industrial use.
Depending on glycol concentration and design, the chiller can typically operate from +5°C down to -25°C or lower, making it suitable for low-temperature industrial processes.
Regular maintenance includes checking glycol concentration, water quality, condenser cleaning, oil level inspection, and monitoring system pressures. Proper maintenance ensures high efficiency and long equipment life.
